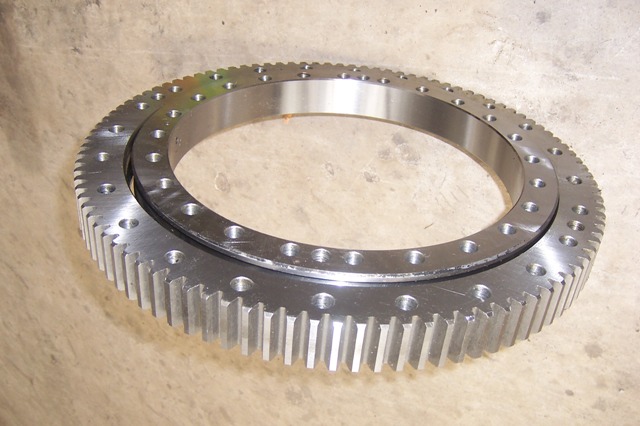

slewing bearing VSA250855-N
Model: VSA250855-N
|
|
Product name:four-point contact ball slewing bearing
Model:VSA250855-N
Type:single-row
Dimension: d=755mm D=997mm H=80mm
Weight:145KG
Package: plywood case
Delivery time:30days
Minimum order:1piece
The single-row four point contact ball slewing ring is composed of 2 seat-rings. It features compact in design, and light in weight.
The balls contact with the circular race at four points, via which the axial force, radial force and resultant moment may be born simultaneously.
It may be used for slewing conveyers, welding arm and positioner, light, medium duty cranes, excavators and other engineering machines.
|
|
