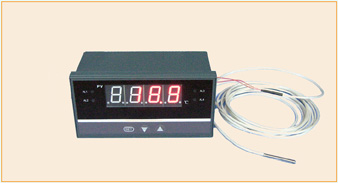

WS3000K temperature measuring instruments
Model: WS3000K
|
|
WS3000K temperature monitor is designed specifically designed and manufactured a temperature monitor for TCP / IP network to transfer data function. It has high accuracy, high stability, low power consumption. It combines sensing technology, computer technology, communication technology can be widely used in blood storage, agricultural research, industrial, environmental, health and epidemic prevention, laboratory, construction, warehousing, transportation, museums, greenhouses and other fields.
This product temperature monitoring data via Ethernet, the strong anti-interference ability of digital signal transmission, connect-with seamless connectivity with the office network, you can use with the existing local area network, with routing capabilities, you can use the INTERNET , so that the product has a wider range of distribution. The monitor uses the import digital sensor, the measurement is accurate and reliable real-time monitoring the temperature of the environment. The high degree of automation products, powerful, stable performance, adaptability, without the need of manpower management, upgrading of equipment of the conventional temperature.
Temperature measurement
The temperature sensor selected American DALLAS Company production of single-bus digital temperature sensor. The temperature range is -55 º C to +125 º C, accuracy ± 0.5 º C. It is characterized by single-bus technology, digital transmission, temperature responsive. Using a digital temperature sensor to replace the traditional methods of sampling, amplification, AD circuit, single-bus is a digital transmission, there is enough anti-jamming capability in a variety of complex work environment, you can high-precision, long continued job.
Main features:
An Ethernet transmission, with the existing network without wiring, installation is not geographical, space constraints.
2, the sensor uses imported digital components, real-time accurate measurement of the temperature of the environment.
3, can be run independently, automatic temperature monitor, record storage and alarm.
4, by setting the temperature of the upper and lower limits can be automatically controlled thermostat device.
5, temperature and humidity limit value gauge can provide a short message alarm.
6, user-friendly design, easy to install, compact appearance.
Parameters as follows:
Name parameter
Temperature measurement range -55 oC To 125 oC
Temperature measurement accuracy of 0.5 º C
Temperature display resolution 0.1 oC
Operating temperature range -40 oC To 80 oC
Temperature correction range ± 9.9 º C
Network interface 100M
Power supply 220V 50Hz
Weight 0.6 Kg
Volume of 180 mm ? 112 mm ? 42 mm
Power 2 W |
|
|
|
|
