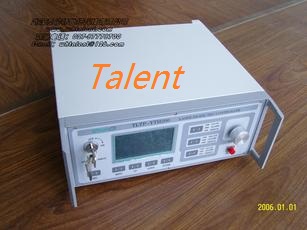

integrated diode laser driver
Model: brand-new
|
|
Integration semiconductor coupling laser power
Features:
Semiconductor laser driver power supply
-Adaptive semiconductor laser output: 0 ~ 3 V (also customized)-Max output current 200 m A / 500 m A / 1000 m A / 2000 m A
-High stability & low noise, control precision •0 ?A, current ripple <5 ?A;
-PD current monitoring;
-Protections of over high current, voltage and heat;
-Alternative inner and outer control
-Display parameters: laser working current, laser interval current, laser work efficiency;
TEC temperature control power supply:
-Intelligent and stepless temperature control in both directions;
-High accuracy of •.1 degrees in temperature control;
-Arbitrary working temperature setting(in general between 5 oC and 45 oC;
-Alarm reminding if the working temperature overstep the setting limit(set by software)
-The modifiable temperature PID feedback parameters;
-Either cold or thermal with homothermal mode;
-Protections of over high current, voltage and heat;
-Protective circuits preventing hardware from being either too hot or too cold;
-Screen displays: TEC working current, voltage, setting temp, controlling temp & PID parameters.
Luminous power detection module (optional)
-The detector installed in the front panel, more convenient test
-High speed and precision of measurement;
-8 piecewise linearization, improve the accuracy and reliability-Large dynamic range |
|
