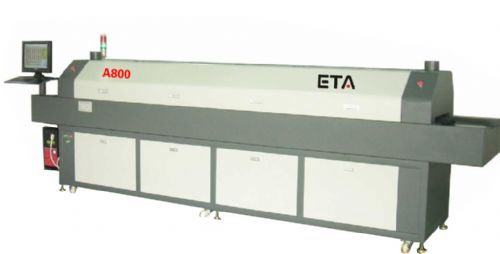

lead-free reflow oven A800
Model: A800
|
|
lead-free reflow oven A800
Heating System
> Eight groups of top and bottom forced hot air convection heating zones.
> Patented heating plates in each zone uniformly transfer heat to the PCBs using forced hot air convection.
> Independent temperature control in each zone to ensure temperature uniformity within the process tunnel.
> Power consumption savings of 1/3 as compared to other systems.
> Patented motorized blower in each zone is designed to ensure stable air pressure, withstand high process temperature and is disturbance-free.
> Audible and light tower alarm for temperature limits and blower malfunction.
> Fast start-up (within 20 minutes) from room temperature to work temperature due to the high efficiency of the motorized heating plates.
Control System
> PC control system with windows based control software.
>Lenove Computer and Siemens PLC
Specifications A-800(Mid-sized 8-Zone)
General
Outside Dimension(LxWxH) : 3600x720x1250mm
Standard Color : Computer Grey
Weight : Approx.420KG
Number Of Heating Zones : Up8/Bottom8
Length Of Heating Zones : 2300mm
Exhaust Volume : 10M3/minx2 Exhausts
Standard Feature Of Control System
Electric Supply Required : 3phase,380V 50/60Hz
Power For Warm : Up 11KW
Power Consumption : 4KW
Warming Time : Approx.20 minute
Temp. Setting Range : Room Temp. --- 300oC
Temperature Control Method : PID Close Loop Control + SSR Driving
Temperature Control Precision : •1.0oC
Temperature Deviation on PCB : •1.5oC (by MR Board Test Standard)
Heating Element : Especial Heating elements For Long Life ;
Commutated Element : Aluminium Alloy Plate
Max. Temp. Gap Between Preheat & Reflow Setting : 80oC
Max. Temp. Gap Between Preheat Zones Setting : 40oC
Max. Temp. Gap Between Reflow Zones Setting : 50oC
Abnormal Alarm : Abnormal Temperature (Extra-high / Extra-low Temp.)
Board Dropped Alarm : Tower Light: Yellow-Warming; Green-Normal; Red-Abnormal
Features Of Conveyor System
Rail Number : 0 Lane (With Rail is Option)
Max.Width Of PCB : 290mm (Option:410mm )
Components Clearance : Top/ Bottom Clearance of PCB is 20mm
Converyor Direction : L?R (Option: R?L)
Fixed Rail Side(With Rail) : Front Rail Fixed(Option:Rear Rail Fixed)
Transmission Agent(With Rail) : Air-Reflow = Chain + Mesh ,N2-Reflow=Chain(Mesh is option)
Converyor Height : 900+/-20mm
Converyor Speed Range : 300~2000mm/min
Temp. Thermocouple Slot : Standard
On Line Editing : Standard
Cooling Method : Forced-Air (Standard) |
|
