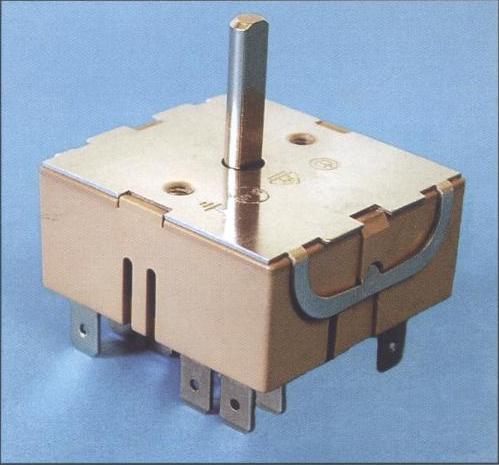

505 series energy regulator
Model: 505*
|
|
50 series Energy Regulators is used in the Cooking Appliance, which designed to have the lowest terminal height, in the smallest physical package and still it provids a fully featured control. This benefits the customer by providing design flexibility and material savings.
1,Switch Rating:
P1-2 13.5A 230V AC RESISTIVE (MICRO GAP)
4-P2 13.5A 230V AC RESISTIVE (>3mm)
4-4A 13.5A 230V AC RESISTIVE
TOTAL AMPERAGE 4-P2 & 4-4A=13.5A MAX.
S1-S2 0.1A 400V AC RESISTIVE
2,Temperature Rating:
T125C MAX. CONTINUOUS
3,Output Characteristics:
CONTINENTAL SCALE, OPERATING RANGE 51~308
3~9% AT 51
45~73% AT 258
100% AT 308
SECOND CIRCUIT (4-4A) ENGAGES BETWEEN 308AND REMAINS ENGAGED UNTIL SPINDLE IS TURNED TO OFF POSN.
4,INDEXING: OFF POSITION&FULL POSITION
5,MOUNTING:TWO-SCREW FIXING. 2*M4 AT 28MM CRS.
MAX SCREW INSERTION 6.5MM
6,OFF POSITIONAL ACCURACY:3
7,TERMINATIONS: ALL 6.3MM TAB
8,APPROVALS: CE,VDE,CQC
|
|
|
|
|
