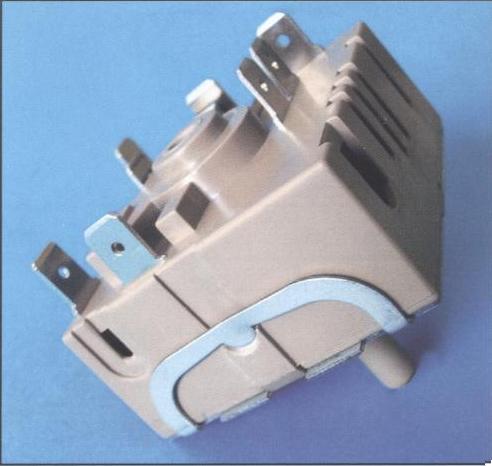

501 series energy regulator
Model: 501*
|
|
1,Switch Rating:
13.5A 230V AC MAX. RESISTIVE
TUNGSTEN HALOGEN(BALLAST LOAD)
SIGNAL CONTACTS:
S1-S2 0.1A 400V AC MAX. RESISTIVE
2,Temperature Rating:
T125C MAX. CONTINUOUS
3,Output Characteristics:
CONTINENTAL SCALE, OPERATING RANGE 52~308
3~9% AT 52
45~73% AT 258
100% AT 308 (INDEXED FULL POSN.)
4,INDEXING: OFF POSITION&FULL POSITION
5,MOUNTING:TWO-SCREW FIXING. 2*M4 SCREWS AT 28MM CENTRES-MAX SCREW INSERTION 5MM.
6,OFF POSITIONAL ACCURACY:3
7,TERMINATIONS: ALL 6.3MM TAB
8,APPROVALS: CE,VDE,CQC
|
|
