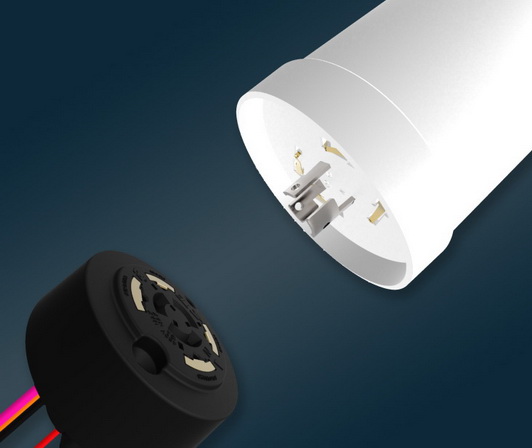

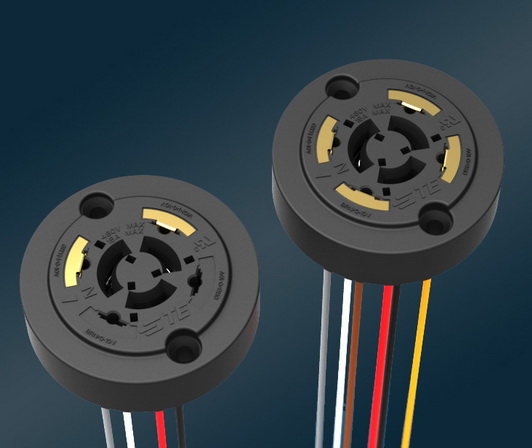

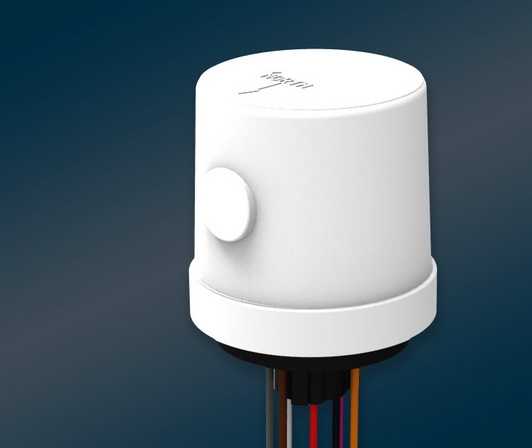

TE Connectivity Ltd. Company  |  Products  |  News  |  Contact Us Multi-Channel Photocontrol Receptacle TE Connectivity launches the new ANSI C136.41 Dimming Compliant Receptacle and spring leaf contacts providing an electrical and mechanical interconnection between a photo control cell and luminaire. Ideal for outdoor commercial and utility lighting, the ANSI Dimming Receptacle is available with two or four dimming contacts to support one or two channel dimming protocols and provides a reliable power interconnect with robust twist lock contacts. Key Features Accepts ANSI standard dimmable photocells to provide a connection between the photocell and the luminaire Available with two or four dimming contacts to support one or two channel dimming protocols Robust twist lock contacts for a reliable power interconnect Receptacle comes pre-terminated with wire leads for ease of integration into new or existing light fixtures Available with 105o and 150o C rated wire insulation for varying temperature rated luminaires Applications Street Lighting Photo Controls Parking Lights Related Products ARINC 600 Next Generation Receptacle Connector TE Connectivity Ltd. These connectors are ideal for commercial and military avionics for air-to-ground communications, in-flight entertainment and collision avoidance, and ... RockStar® HighPower 550 A modular high-current connector system Weidmüller Interface GmbH & Co. KG Uncompromising power - in a clever and safe packaging The RockStar® HighPower modular high-current connector system has been custom-designed for ... Fused terminal block Ningbo Goosvn Electronic Co.,Ltd. Fuse type transformer terminal block Housing material PA66 Contact copper Wire range 2-2.5mm2 Rated voltage 250V Rated current 6.3A Pole ... Barrier terminal block Ningbo Goosvn Electronic Co.,Ltd. Barrier terminal block Wire section:0.5-25mm2 Rated current/voltage:25A/600V Thickness/width/height: 19/55/30mm Screw nominal diameter:M8... feed through terminal block Ningbo Goosvn Electronic Co.,Ltd. FEED THROUGH terminal block Type:H/U/W/V/F Material:PA PE PP/Brass/Stell screw Voltage:250-450V Cable Range:2.5MM-40MM Current:3A-150A...
