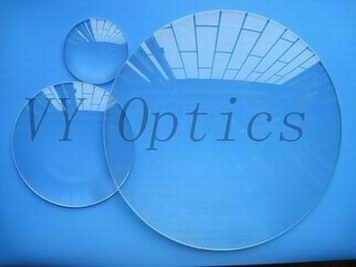

Big plano convex spherical lens Dia. is 188mm BK7 glass spherical lens
Model: VY003
|
|
Big plano convex spherical lens, Dia. is 188mm, BK7 glass, used in automotive diagnostic testers and tools, exhaust gas analyzers, headlight aligners, Dia. 100mm used in magnifier, small lenses are used in air force simulators, tactical simulators, education and so on.
Plano convex spherical lens with big diameter, mainly used in automotive diagnostic testers and tools, exhaust gas analyzers, headlight aligners, Dia. 100mm used in magnifier, small lenses are used in air force simulators, tactical simulators, education and so on.
The specification of the spherical lens as follow:
Dia. :188. 2 +0/-0. 2mm
C. T. :18. 38mm
E. T. :2. 95mm
Curvature radius:295. 495mm
F. L. :565mm
Material: N-BK7
SD: 60-40 |
|
