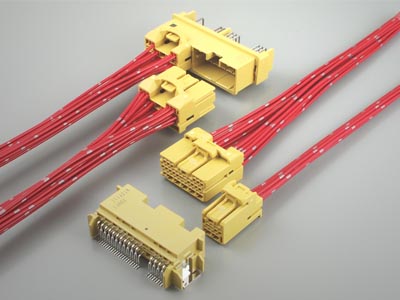

| 0.64(0.25) Non-waterproof Connector for Automotive SRS Airbag ECU MX57A / B Seri
|
|
Along with the demand of lightweight vehicles for fuel economy and increasing number of parts from the improvement of electrical equipments, the automotive electronic units have been requested to be smaller and lighter. The connectors used in-vehicle have been demanded accordingly.
To meet these demands, JAE has developed the non-waterproof SRS airbag ECU connector (MX57A/B Series) that is more miniaturized than our previous product.
The MX57A / B Series is more compact (connector pitch 2.2mm) and low-profile (height 14.8mm) compared to our previous product and is equipped with a function that forms a short circuit when mated to prevent accidental inflation and rupture of the airbags.
Also the same constant reliability is ensured by the utilization of an existing socket terminal with proven results.
:: Features
Number of contacts for MX57A Series is 30 pos. and MX57B Series is 48 pos.
Connector with 2.2mm contact pitch, 14.8mm height, staggered alignment board to cable type.
Short circuit function to prevent accidental airbag inflation and rupture with the static electricity of the squib line.
Two-block product with due considerations for in-vehicle harness layout.
The same conventional reliability is ensured by the using of our existing SRS non-waterproof 0.64(0.25) terminal as socket terminal.
Connector mating condition can be electrically detected.
:: Applicable market
Vehicle SRS ECU
:: General specifications
No. of Contacts : MX57A Series: 30 pos. (26 pos. for signal + 4 pos. for mating detection)
MX57B Series: 48 pos. (44 pos. for signal + 4 pos. for mating detection)
Contact Resistance : 5m ohms max. (initial: signal terminal)
Operating Temperature : -40 Deg. C + 80 Deg. C
Maximum Operating Temperature : 120 Deg. C
(ambient temperature and temperature increase from current load)
Applicable Wires : AVSS 0.3, AVSS 0.5, AVSSX 0.5f
Board Mounting Method : SMT for MX57A
Through-hole for MX57B |
|
