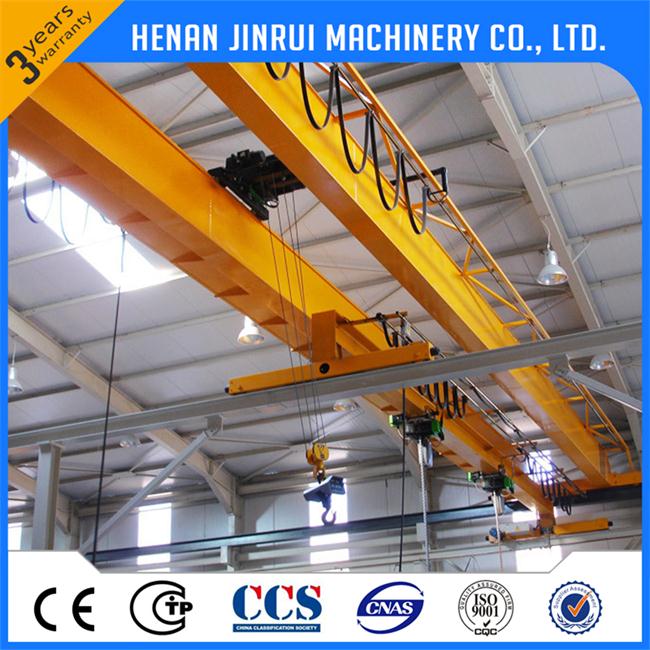

Material Handling 50 Ton Overhead Bridge Crane Eot Crane
Model: QD
|
|
Double girder overhead crane is composed of box type bridge frame, lifting trolley, crane traveling mechanism, and electrical system. It is rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work. It could be classified into several working duties,e.g.A5,A6,A7 according to the working frequency and pure working time. Double girder overhead crane allocation hook used in machining, assembly workshop, metal workshop, metallurgy and casting workshop and warehouse handling work; allocation of grab is suitable for metallurgy, cement, chemical or open fixed span in bulk material handling.
Features
Reasonable structure and favorable performance.
Smooth starting and stopping.
Safe and reliable traveling, long life.
Low noise, commodious cabin with good view.
High quality automatic welding and NDT inspection.
Crane drive: IP54 or IP44, level F insulation.
Designed according to your reques.
Safety system
Weight overload protection device.
Top quality long time bearing polyurethane materials buffer.
Crane travelling limit switch.
Voltage lower protection function.
Emergency stop system.
Current overload protection system and so on.
Structure
The main girder of bridge crane includes girder box, platform, pantograph and trolley rail.
The trolley of bridge crane are assembled with motor, reducer, brake, trolley frame, drum, hook, pulley, rain cover and other parts. It includes lifting mechanism and cross traveling mechanism.
The Ground Beam of bridgecranes works as long traveling mechanism, and it combines with beam, Wheel,Motor, Reducer, Brake and Other Parts.
We choose high quality electric parts with rain cover. The power supply mode are cord reel. We could offer the top brand of Electric parts such as: Chint, Siemens,Schneider and so on.
Product Classification
LH type double girder electric hoist overhead crane
Capacity: from 5ton to 32ton
Span: 7.5m to 25.5m
Working grade: A3-A5
Working temperature within -25 to +40 centigrade.
Control model: cabin room, remote control and both
QD type double girder overhead crane
Capacity: from 5ton to 50ton
Span: 10.5m to 31.5m
Working grade: A5-A6
Working temperature within -25 to +40 centigrade
Control model: cabin room, remote control and both
YZ type doubel girder Foundry overhead crane
Lifting capacity:5ton-320/80toon
Working temperature: -10o~60o
Working duty: A7
Application: pouring melted iron, lifting molten steel and so on
Control model: cabin room, remote control and both
QC type electromagnetic double girder overhead crane
Capacity: from 5ton to 50ton
Span: 10.5m to 31.5m
Work duty: A6
Appication: load and unload metallic materials such as steel plate, scrap iron, and so on
Features:Strong absorption force, perfect performance,low maintenance
QZ type double girder overhead crane with grab
Capacity: from 5ton to 20ton
Span: 10.5m to 31.5m
Work duty: A6.
Appication: loading goods in port,factory,workshop and power plant
Control model: cabin room, remote control and both
European type double girder overhead crane
Capacity: from 5ton to 500ton
Span: 7.5m to 32m
Work duty: A5-A7
Appication: lifting goods or materials in plants,warehouses,materials stocks
Features: Smooth starting and stopping,low noise, commodious cabin and good view |
|
