Home > Industry Automation > Industrial Safety & Industrial switch > Shanghai Sinmar Electronics DB-14 Power Sockets Multifunction Sockets

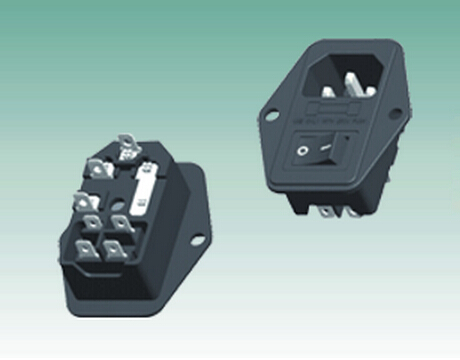

Shanghai Sinmar Electronics Co.,Ltd Company  |  Products  |  News  |  Contact Us Shanghai Sinmar Electronics DB-14 Power Sockets Multifunction Sockets Model: DB-14 Temperature:0~85? Air pressure:86Kpa~106Kpa Operating temperature:﹣10~105? Relative humility :35%~85%RH Insulation resistance:≥100mΩ(500VDC) Contact resistance: ≤50mΩ Test voltage: Between terminal of the same polarity AC2500V,50/60Hz,1min Between current-carrying metal parts and Ground, and between each terminal and non- AC3750V,50/60Hz,1min Current-carrying metal part. Vibration resistance:10~55Hz，1.5mm Double amplitude Rating: UL CSA 5A250VAC T105 VDE 3C 2.5A 250VAC Safety approvals: UL、CUL、VDE、CCC、KC、RoHS Related Products Shanghai Sinmar ElectronicsTin XN-1209-BSR Slide Switches 9(4.5)A125/250VAC Shanghai Sinmar Electronics Co.,Ltd Technical characteristics Rating: 8A 250VAC 8A 250V 16A 125VAC / 8A 250VAC Insulation resistance: ≥100mΩ (500VDC) Contact resistance: ... Shanghai Sinmar Electronics KW3A-16Z6 Micro Switches 16A250VAC 3PIN Arc Lever Sw Shanghai Sinmar Electronics Co.,Ltd Technical characteristics Working speed: 0.1mm ~ 1m / s and drive the way Rating: 16A250VAC (default value) 10A250VAC / 5A250VAC / 1A250VAC Operating ... SC26-2 Programmable Safety Controller Banner Engineering Corporate With a smaller footprint and addition of Boolean logic functions, the SC26-2 was designed to be easy to use, flexible and efficient. *XS26-2 Expandable ... Hinge Style Safety Interlock Switches Banner Engineering Corporate Overview Three types are available - load-bearing hinge, hinged lever and rotating hinge. Safety switching point can be set anywhere within 0-180º ... EZ-SCREEN Low-Profile Safety Light Curtain Systems Banner Engineering Corporate Overview The space-saving, compact profile of the EZ-SCREEN LP is ideal for smaller machines, yet robust enough to meet the demands of large power ...
