Pipeline weld heat treatment machine
Model: MYD-10KW
|
|
MYD-10KW Induction heater for

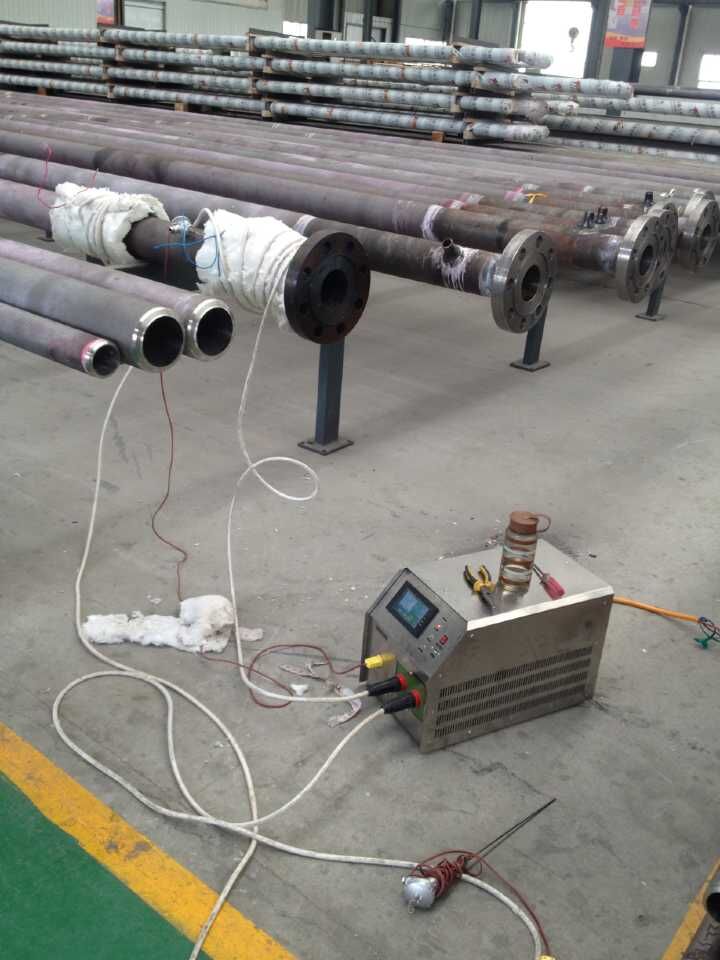

Weld heat & post-weld heat treatment and pipeline heating
MYD-10KW Induction Heating Power
Input voltage 3*380V, 50/60Hz, 4 Wires
Input Current 1~15A
Output Current 0~200A
Output Power 1~10KW, Max 15KW, 150% output duty cycle
Output Frequency 5~30KHZ
Thermocouple K type
Temperature system Build in induction machine
Heating Temperature Max500oC
Size 650 x 310 x 410 mm
Weight 26 kg
Induction Heating coil
Length 10~20 M
Diameter 15 mm
Working temperature 0~350oC
Pipeline Size OD: 50~500mm or equivalent
Main Application:
Preheat: weld heat,coating, spraying, bending, fitting&unfitting heat
Post-weld heat treatment: tank, boile, pipeline, steel sheet or other metal jobs
InductionHeat: mold heating, shipboard, zinc bath, large& irregular metal parts
Pipeline material heat: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material
MYD-10KW heating machine including:
Main Features:
High speed: 70%
Low tolerance
Energy Saving
High efficiency
Accurate heating
Simple operation
Non-contact heating
Environmental protection
Hypothermia circumstance
Air cooling is suitable for low-temperature environment
Induction heating is more uniform than oil,gas,flame heating
Shipping Details:
MYD-10KW heating machine (heating power, Cable coil, thermocouple included.)
Delivery Time: within 5 working days
Delivery: by air or by sea.
Packing: standard wood box
Packing size:680*340*450mm
Power weight: 32kg
Packing Weight: 35-45kg(parts included)
Country of Origin: China
Coils:
|
|
|
|
|
