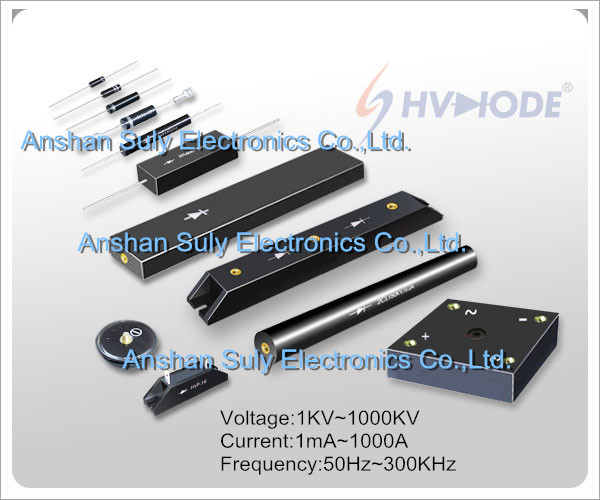

Suly Hvdiode High Voltage Diode/Silicon Block/Silicon Assembly/Rectifier Bridge
Model: hvdiode
|
|
Suly Hvdiode High Voltage Diode/Silicon Block/Rectifier Bridge/Silicon Assembly
Product Data:
Voltage:1KV~1000KV
Current: 1mA~1000A
Frequency: 50Hz~300KHz
Product Features:
High Voltage Diode
Hvdiode high voltage diode products are composed of multiple miniature P-N junction chips in series, which are the high voltage resistance layered modular constructions.
Features:
1. Low leakage current, impact resistance, avalanche breakdown protection.
2. High-speed transfer switch reaction, reverse recovery time for 35 to 150nS.
3. High heat resistance, PN junction temperature up to 150oC and junction temperature of special high heat chip up to 170oC.
4. Environmental-friendly technology and complying with international standards.
High Voltage Silicon Stack/Block
Hvdiode high voltage silicon stacks adopt international latest design technology for high voltage rectifier devices producing, and the work junction temperature up to 175oC. Original scientific thermal design ensure power supply and device work well in limiting condition, and meet the operating requirements which can work continuously in bad working conditions.
Features:
1. Adopting international latest technology for the production of die chips assembly
2. Low leakage current, low power, high reliability.
3. Excellent impact resistance for instantaneous high current.
4. Reverse avalanche breakdown.
5. Working temperature-40oC~+175oC.
6. Various size or customized
7. High voltage rectifier, isolation and protective effect in circuits.
High Voltage Rectifier Bridge
1. Various sizes are customizable, installation and wiring are easy
2. Low forward voltage drop, low leakage current
3. Avalanche breakdown protection
4. High surge current discharge impact
5. Junction temperature 150~175oC, excellent high temperature performance
6. Epoxy package with anti-corrosion properties on surface
High Voltage Silicon Stack Assembly
Rectifier current: 1mA~ 100A
Reverse voltage: 1KV~500KV
Working frequency: 10KHz~200KHz
Reliable table facet structural design and diffusion technology make them have excellent performance
More shapes to choose
Applications:
Hvdiode rectifier products are widely used in medical equipments, electrostatic precipitation, spraying, high frequency thermal bonding, oil dehydrating, high voltage detection, plasma injection, ion acceleration, electron beam welding, electron microscopy, air purification, vacuum coating, ultrasonic cleaning, high energy ignition, X-ray machine industrial microwave, radar modulation, laser equipments, all kinds of other electronic equipments.
Anshan Suly Electronics Co., Ltd. main products are high voltage silicon stacks, industrial special silicon stacks, high voltage silicon rectifier diodes, high voltage silicon stacks of microwave oven, high voltage silicon rectifier bridges, high voltage rectifier components, high voltage modules and so on.
Hvdiode products are widely used in medical equipments, electrostatic precipitation, spraying, high frequency thermal bonding, oil dehydrating, high voltage detection, plasma injection, ion acceleration, electron beam welding, electron microscopy, air purification, vacuum coating, ultrasonic cleaning, high energy ignition, X-ray machine industrial microwave, radar modulation, laser equipments, all kinds of other electronic equipments'' power supplies.
Hvdiode products sell well throughout domestic and overseas.
Please feel free to contact Connie if you have any need of Hvdiode rectifier components. |
|
