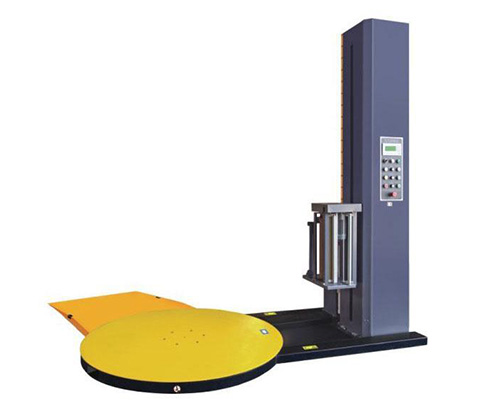

G1 Semi-auto pallet wrapping machine with powered pre-stretch film carriage
Model: G1
|
|
Specifications:
Wrap speed: 30 - 40 pallets/hour
Turntable diameter: 1500mm
Turntable speed: 3 - 15rpm
Max load weight: 2000kgs
Wrapping height: 2100mm
Turntable height: 82mm
Wrapping settings: wrap cycles /top wraps /bottom wraps /overwrap
Carriage speed: 5 meters/min max
Turntable motor: 0.75kw
Pre-stretch motor: 0.2kw
Carriage lifter motor: 0.37kw
Power: 1PH 220VAC, 50/60Hz
Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 18kgs |
|
