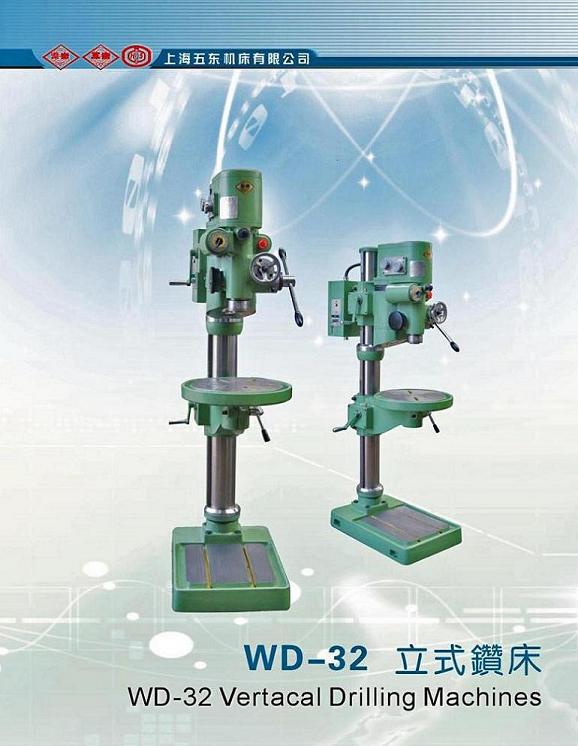

VERTICAL DRILLING MACHINE
Model: WD-32
|
|
VERTICAL DRILLING MACHINE:
WD-32 VERTICAL DRILLING MACHINE Principal Technical Parameter
1. Max. diameter capacity (Iron)32mm
(Steel)25mm
2 .Distance from axis of spindle to generating line of column300mm
3 .Max. distance from spindle nose to working surface 800mm
4 .Max. distance from spindle nose to working surface of baseplate1225mm
5. Max. travel of spindle box 270mm
6 .Max. travel of spindle 150mm
7 .Max. travel of table bracket 550mm
8 .Taper of spindle Morse No. 4
9. Step of spindle speed 12
10 .Range of spindle speed(50Hz) 78,105,160,235,315,400,480,555,840,1230,1650,2500 r/min
11. Effective working area of table????1902 (mm?)
12. Effective working area of baseplate (L???b) 360*420mm
13. Turn angle of spindle box???180?
14. Turn angle of table and bracket???180?
15. 2-speeds motor''s power 1/1.3/1.7 kW
YD112-8/6/4speed (50Hz) 705 /940/1440 r/min
16. Max. overall dimensions (l???b???h)505mm???880mm???1910mm
17. Weight of the machine (gross weight) 520kg
(net weight) 390kg
|
|
