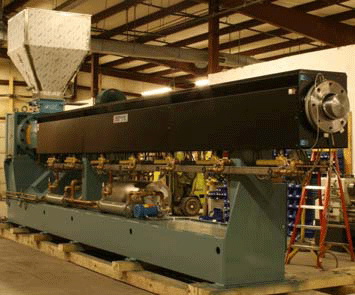

| Large ULTRA Standard Extruders
|
|
Large ULTRA extruders are fixed horizontal extruders ranging from 4.5" to 12" diameter, any L/D, vented or non-vented. ULTRA extruders are available with air-cooling or water-cooling. The standard ULTRA is well suited for all extrusion applications including pipe, large profile, sheet, cast film, wire & cable, compounding, etc. They may be mounted on wheels with or without track, with or without some limited height adjustment. A wide range of options and cost effective customization is available.
Large ULTRA Standard extruders feature :
Rigid base with leveling pads, lifting eyes, and/or fork pockets
Heavy duty double or triple reduction gear reducer
Integral high quality spherical tapered thrust bearing
Direct coupled motor
Feed section casting with full surround cooling and optional field replaceable feed liner
Deep finned cast aluminum, bolt-on heaters with tight fitting cast aluminum shrouds for air cooling
High capacity barrel cooling with long life blowers (Turbo-Air blower optional)
Single or double pass cast aluminum heater/coolers for air cooling
Full surround, dual axis adjustment barrel support (s)
Heavy duty heated single or double bolt clamp with titanium nitride coated hinge pins (electrically powered clamp optional)
Easy maintenance wire management system
Temperature controllers with automatic heater burn-out with audible alarm
Digital pressure indicator with automatic high pressure drive shut-down circuit
Multiple AC vector drive and motor brands to choose from
|
|
|
|
|
