| KS Turnflex
|
|

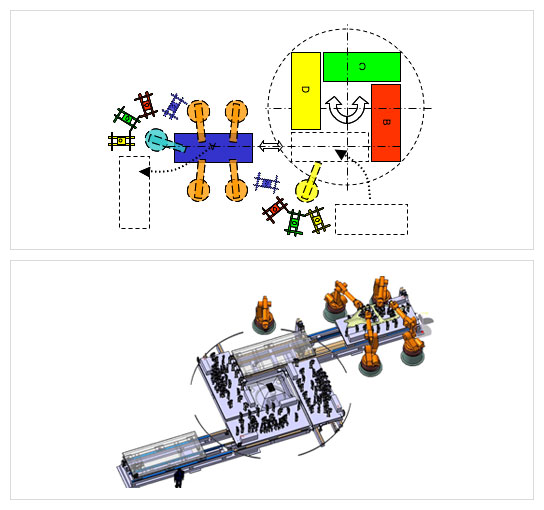

KUKA Turnflex gives manufacturing systems a high type flexibility:
Turnflex combines type flexibility and single tooling Geometry fixtures are readily accessible Simple retrofit of new models Easy servicing of fixtures due to optional maintenance element
technical data
Number of fixtures: 1 - 4 Dimensions of fixture carriage: Apporx. 1800 x 4500 mm Mass per carriage (with fixture): Max. 2500 kg Height of fixture carriage: Approx. 950j mm above floor Travel of fixture carriage: 6 - 8 m Turntable: Reversible rotation (shortest route to working position)
positioning of turntable
reversible rotation (shortest route to position)
PLC selects position by programme number
position is controlled by proximity switch for step-by-step operation
position lock
features
KUKA Turnflex gives manufacturing systems a high type flexibility Turnflex combines type flexibility and single tooling Geometry fixtures are readily accessible Simple retrofit of new models Easy servicing of fixtures due to optional mantenance element |
|
