4-Display Dual-View Videowall Processor
Model: VW-1104
|
|
2 different video sources can be enlarged across 4 displays, is a powerful and fully real time data/video processor for control room, exhibition, runway fashion show, large presentation, digital signage, broadcasting, education, surveillance systems

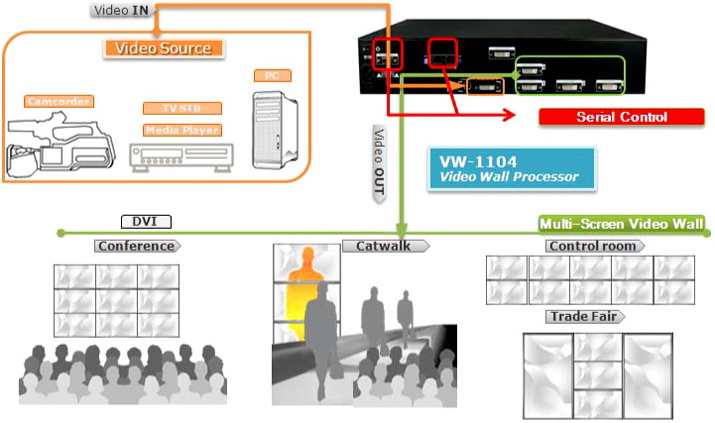

Meicheng 4-Display Dual-View Videowall Processor VW-1104 is a powerful and fully real time data/video processor for multiple flat panel displays or projectors. With the most flexibility on the input side, the unit accepts HDMI, VGA, DVI, CVBS, S-Video and YPbPr and splits the input onto the connected 4 displays. The VW-1104 can display up to 2 video inputs from the front end video mixer. Thru DVI transmission, the quality of the outcome videos is guaranteed. The output display is grained up to 255 by 255 squares. Virtually any setups for the display layout can be possible by the provided software. The embedded mixer is an advanced video processor for multimedia presentations. It supports up to four video inputs, of which two can be outputted simultaneously in Picture-In-Picture (PIP) or Picture-Aside-Picture (PAP) modes. The VW-1104 allows you to manipulate input videos, wherever position and whatever sizes you want for viewing. Typical applications include digital signage, and broadcasting/education/ surveillance systems etc. |
|
