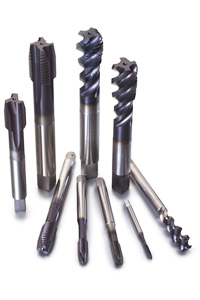

| Optimized taps for steel - CoroTap 210/370
|
|
Sandvik Coromant now offers a full programme of thread tapping tools for easy selection and use: CoroTap tools for highest productivity in each ISO material and Spectrum Tap tools for reliable performance in a multitude of workpiece materials. CoroTap 210 and CoroTap 370 are new optimized tapping tools for steel materials. They complete a range of optimized CoroTap tools.
??igh productivity and long tool life
??educed machine downtime
??ighly efficient machining process
??ncreased productivity through higher cutting speeds
??ptimum performance through material-specific designs and coatings
Features
??dge design is an important design feature of CoroTap, adapted for each tap size and application: reduces axial force and torque; makes tool run more smoothly; reduces risk of cutting-edge chipping; improves surface quality, tool life and chip evacuation
??igh helix geometry design for 3?D thread depth for excellent chip evacuation
??ack chamfer reduces torque and chipping
??he tap material HSS-E-PM is strong and wear resistant. With CoolTop coating, wear resistance is further increased.
??igh surface quality for best coating adhesion to reduce adhesive wear and make tool stronger
??HX tolerance
????pplication
??ptimized for steel materials, hardness up to 350 HB
??vailable for through holes and blind holes in a choice of DIN, DIN/ANSI standard
??hread forms: Metric, Metric Fine, UNC, UNF
??epths up to 3?D
??vailable with internal coolant in M, UNC and UNF for both through and blind holes
??esigned for use with SyncroFlex?* high performance tap holders
CoroTap thread tapping tools are optimized for every workpiece material. An overview of the full CoroTap range is available
* SynchroFlex is a registered trademark of Tapmatic Corp., USA
|
|
