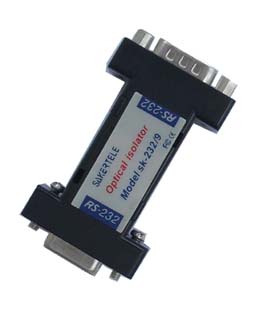

RS232 photoelectric isolator converter
Model: sk-232/9
|
|
SAKERTELE sk-232/9&sk-232/9B
RS232 photoelectric isolator converter
1.0 GENERAL INFORMATION
Thank you for your purchase of this Sakertele Electronics product,sk-232/9&sk-232/9B Series is RS232 3-channels photoelectric isolator converter. Both sides of an RS-232 connection are isolated optically to provide perfect protection against lightning surges, accidental high voltage shorts, and ground loops.
2.0 PRODUCT SPECIFICATIONS
1. Interface feature : compatible with EIA RS-232 and CCITTV.24 asynchronous protocol.
2.Connector: DB9 connectors for both ends.
3.Transmission mode: asynchronous fully transparent.
4.Isolation voltage: 500V continuous or 2,500 impulse.
5.Communication rate: Automatic baudrate detection, maximum
57.6KBPS(sk-232/9) or 115.2kbps(sk-232/9b).
6.Power supply: Port-powered RS-232(sk-232/9 )or External 5v dc power source
supported (sk-232/9b)
7.Serial ports protection, surge and electrostatic suppression.
8.Dimensions: 64mm?32mm?19mm
9.Working environment: -40oC to 85oC, relative humidity 5% to 95%.
This product has been thoroughly inspected and tested and is warranted for One Year parts and labor. If any questions or problems arise during installation or use of this product, please do not hesitate to contact Shenzhen sakertele electronics technology co.,ltd Technical Supporte. |
|
|
|
|
