| Helitronic Basic - High flexibility for regrinding
|
|

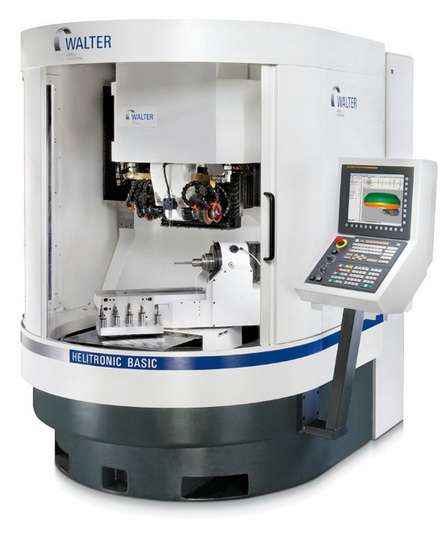

Helitronic Basic - High flexibility for regrinding
The Helitronic Basic offers maximum cost effectiveness and flexibility. Characteristics that are particularly important for regrinding. The Helitronic Basic is generously equipped with these characteristics, and is therefore an essential option for regrinding companies.
Machine base:
Grey cast iron
Drives:
Motor output:
8KW/8000min.-1
Spindle diameter:
70 mm
Cooling:
Belt filter system 480 litres 6bar
Control system:
FANUC 310i
Standard software:
P1,P3,ToolStudio
Max. wheel diameter:
150 mm
Complete machining D/L:
240 mm/255 mm
Machining length perimeter/front:
350 mm/280 mm
Wooden tools - diameter (P7):
320 mm |
|
