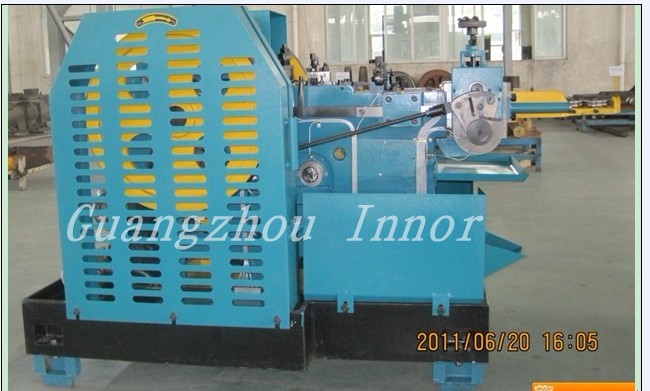

cold heading machine
Model: ID 5 X 85
|
|
Model ID 5 X 85
Forging Station (Nos.) 1
Max. Cut-off Dia.(mm) 5
Max. Cut-off Length (mm) 85
Static Die Ejection Length (mm) (K.O Stroke) 90
Dynamic Die Ejection Length (mm) (P.K.O Stroke)7
Shear Size (T X W X L mm) 9X32X65
Main Die Size.(mm) ?34.5X80
#1????2 Punch Die Holder Size ?31X60
Cut-off Die Size (mm) ?19
Main Slider Stroke (mm) 92
Screw Size can be made??m????
Max. Length 65
Min. Length 12
Max.Output (Pcs./Min.) 120-140
Main Motor (Kw) 2.2 (3 hp)
Oil Pump Motor (HP) 1/4
Weight (Kg) 1950 |
|
|
|
|
