Home > Metalworking Machinery > EDM > CNC Wire Cut EDM DK7740

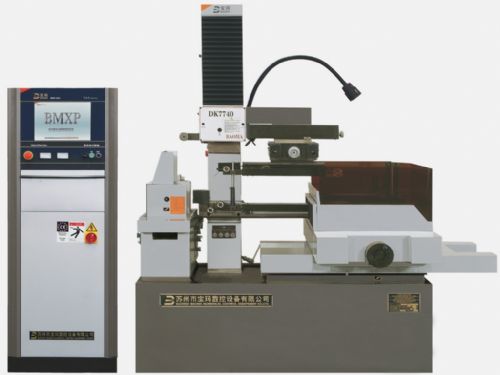

Suzhou Baoma Numerical Control Equiptment Co.,ltd Company  |  Products  |  News  |  Contact Us CNC Wire Cut EDM DK7740 Model: DK7740F CNC WIRE CUT EDM DK7740D Unit DK7740D Worktable size (L x W) mm 500 x 785 Table travel(X x Y) mm 400 x 500 Max. workpiece thickness mm 500 Max. taper angle/plate thickness degree/mm •0•100 Max. machining speed mm•min 150 Precision Octagon mm <=0.015 taper mm <=0.1 Max. working current A 6 Roughness, three cutting ?m <=1.5 Wire diameter mm 0.15~0.2 Wire travelling speed m/min 5~11 Load of table Kg 500 Working solution working solution BM-2/BM-4 or Saponification Liquid Working reservoir capacity L 56 Power supply 3N-380V/50Hz Power consumption KVA 3 Wire guide frame Adjustable Machine dimensions(L x W x H) mm 1450 x 1000 x 1550 Package dimensions(L x W x H) mm 1800 x 1400 x 1800 Machine weight Kg 2000 Controller type BMW-2009 Related Products CNC Die Sinker EDM Machine Suzhou Baoma Numerical Control Equiptment Co.,ltd Parameters UNIT EDMN850CNC Working Tank (LxWxH) mm 1800 x 1100 x 570 Max. Oil Level mm 350 Table Size (LxW) mm 1150 x 600 Travel Size X mm ... Helitronic Diamond Walter Maschinenbau GmbH With its Two-in-One concept, the Helitronic Diamond opens the door to the future market of PCD tools specifically for metal machining. Eroding of PCD ... WorkNC Wire EDM Sescoi USA Inc. WorkNC Wire EDM is highly reliable, specialized Wire EDM CADCAM software specifically developed for wire erosion operations. It enables comprehensive, ... EDM Small Hole Drilling machine Suzhou Baoma Numerical Control Equiptment Co.,ltd The machine characteristics: ?? There is a window on the machine bed for pump pressure, which is easy and convenient to look and adapt water pressure. ...
