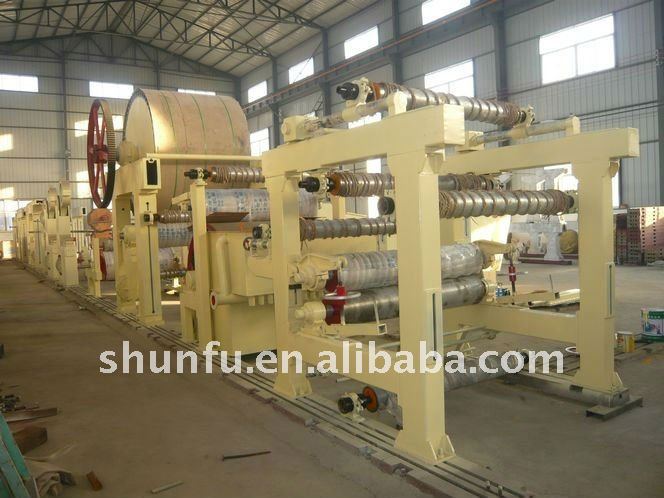

| 1575 Model Corrugated Paper Making Machine
|
|
Product Specifications /Features
Detailed Product Description
1 output paper: kraft paper, corrugated paper
2 net paper width: 1575mm
3 capacity: 7t/d
4 grammage:120-200g/m2
Structure and characteristic of main part:
1.Cylinder section: ø1500mm?2300mm stainless steel cylinder mould 2 sets, ø450mm?2300mm couch roll 2 sets, f400?2300mm reverse roll 1set, coated by rubber, rubber shore hardness 38ºC±2.
2.Press section: ø500mm?2300mm marble roll 1 set, ø450mm?2300mm rubber roll 1 set, coated by rubber,rubber shore hardness 90ºC±2. Pneumatic compression device, allocating a group of scraper.
3.Dryer section:ø1500mm?2300mm dryer can 2 sets,ø500mm?2300mm touch roll 1 set, ø4500mm?2300mm double-dryer cans fly roll 1 set, allocating two scrapers and setting the dried wire device od double-dryer can. Pneumatic compression device, coated by rubber,rubber shore hardness 90ºC±2.
4,winding section: 1880mm cylindrical winding machine 1 set.
5.Drive way: AC inverter speed, section drive.
After sale service:
1,The company strictly in accordance with the signed device configuration and
technical requirements ,According to the national industry standard for design
and manufacturing, and guaranteed to the user''s device is compliant qualified products.
2, After the commencement of the contract, within ten days of the equipment design
and manufacturing company,Enduser installation process coordination, convergence,
and inspection;Business contacts on both sides of the letter have to be back within 8 hours.
3, In accordance with the mutually agreed time and the cycle for equipment installation,
and commissioning.
4, Equipment quality and shelf life of one year, the vulnerability is not within the guarantee period.
Package of quality roller shelf life of six months.Refers to all goods shipped to the user The date of
acceptance for the quality of shelf life.
5, The quality warranty period, the company free of charge to provide the necessary technical services,
Occurred as a result of equipment design, manufacturing quality problems lead to equipment,
the company will Responsible for replacement and maintenance.
6, After shelf life, the company to provide customers with technical services for life, and long-term To price and quick delivery of spare parts, spare parts.
|
|
