| TXZ Ceramic Paper
|
|
Introduction
This paper is made by wet forming process, with ceramic fibers as main raw material. It has properties of high temperature resistance, chemical corrosion resistance, thermal shock stability, low thermal conductivity, high electric insulating strength and high elastic modulus. Free of asbestos, it is characterized by longer fibers, low shot content, low density, high strength, good resiliency and ease for die cutting and winding . It is a high-grade and light-weight refractory material that can be used for high temperature insulation, sealing, electric insulation, sound absorbing and filtration, etc. to replace asbestos.
Specification
Thickness (mm) 0.5~6.0
Density(kg/m 3) 19020
Service temperature( oC) 600,800,1000,1200
Classified temperature( oC ) 800,1000,1260,1350
Service temperature (kN/m) 0.3-0.90
1. The special product beyond the above range can be provided after communicated and confirmed by both sides.
2. The width ranges from 50mm to 1220mm, the length is available according to custormer''s request.
3. Both the hard type and soft type can be provided according to customer''s request.
Application
High temperature insulation for industrial furnaces, steel ladles, casting barrels and submerged nozzles; electric and thermal insulation for electric furnaces; sealing for furnace doors and expansion joints; lining for aluminum casting molds; release sheets for glass-ceramics or heat melted glass and special ceramics; high temperature gaskets; thermal and electric insulation for heaters; acoustic and thermal insulation for automobile mufflers; heat insulation for exhaust tubes and pipes, etc.
Packing

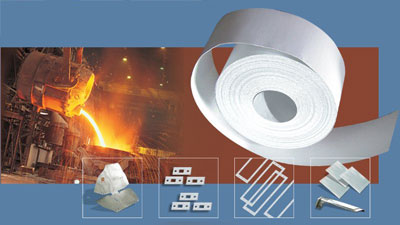

Supplied in rolls wrapped with plastic film and contained in cartons. |
|
