| VXtrack Dynamic Tracking Module
|
|

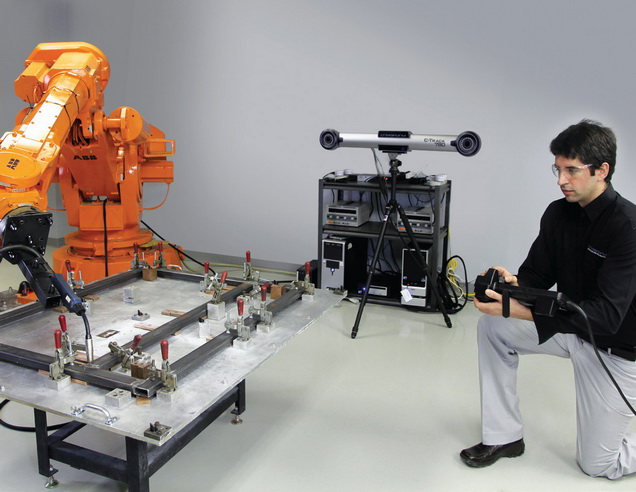

The VXtrack dynamic tracking module is a key component of TRUaccuracy technology, which guarantees the highest precision. Teamed with the C-Track dual camera optical sensor, the VXtrack module can be used to simultaneously and continuously measure positions and orientations in space with great precision, which makes it possible to control displacements, drive assembly processes or measure deformations.
Combined with the portable coordinate measuring machine (CMM) arm-free probing system HandyPROBE, VXtrack provides a complete portable 3D measuring solution offering both probing inspection and dynamic measurement capabilities. Plus, the probing stylus is very useful for aligning parts with respect to a referential (determined through a group of reflectors), allowing for movement or deformation monitoring directly on the part''s referential.
Benefits
TRUaccuracy technology that guarantees the highest precision, in the lab or on the shop floor
Simultaneous measuring of the set of reflectors, for increased 6 DOF precision (position and orientation)
A complete inspection and dynamic measurement solution integrating the portable coordinate measuring machine (CMM) arm-free probing system HandyPROBE and compatible with the MetraSCAN optical CMM 3D scanner
Passive, wireless, low cost and ultralight (<1g) reflectors, available in adhesive or magnetic versions and 100% compatible with photogrammetric measures (for resetting with a global measure in the case of large equipment)
Main features
Rate of up to 24,000 3D points per second with oversampling (3000 without oversampling)
6 DOF measuring (position and orientation) of a rigid set of reflectors
Synchronous measurement of the reflector set
Measuring volume from 3.8 to 14.8 m3 (133 ft3 to 518 ft3)
1 unique system for 3D inspection and 3D dynamic measurement
Real-time curve display in VXelements
Export to .csv format
API for interfacing with third-party applications
Acquisition synchronization capability through external trigger input |
|
